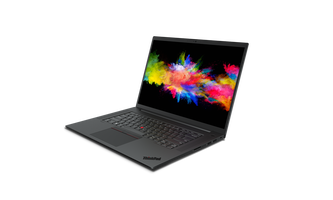

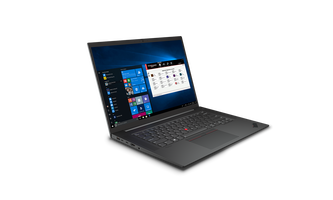

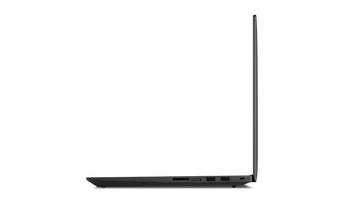

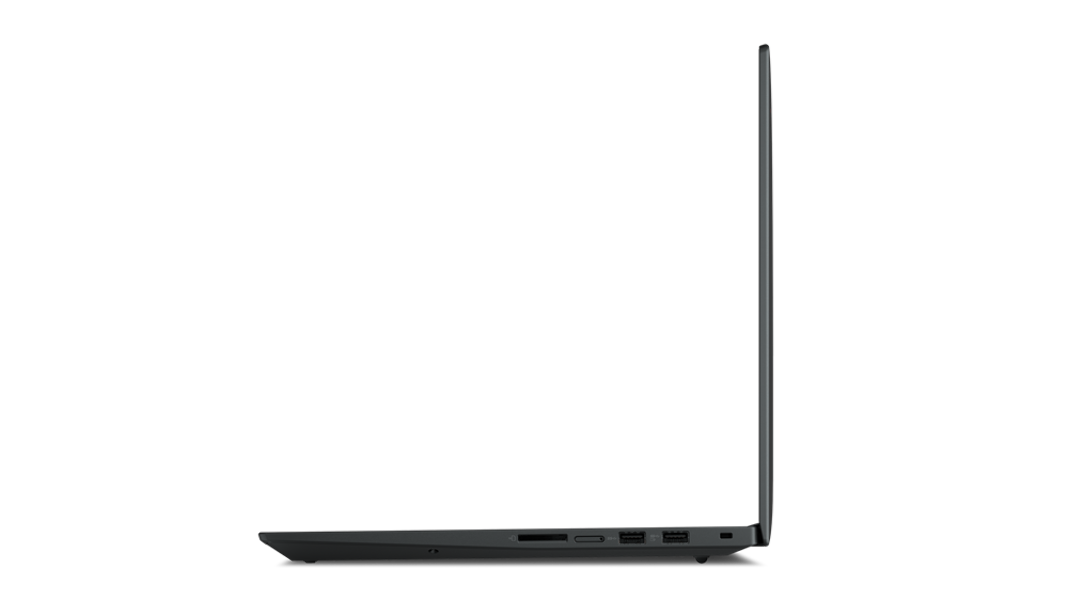

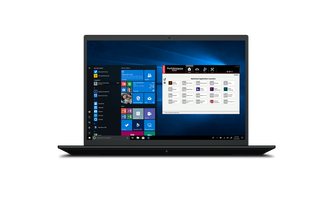

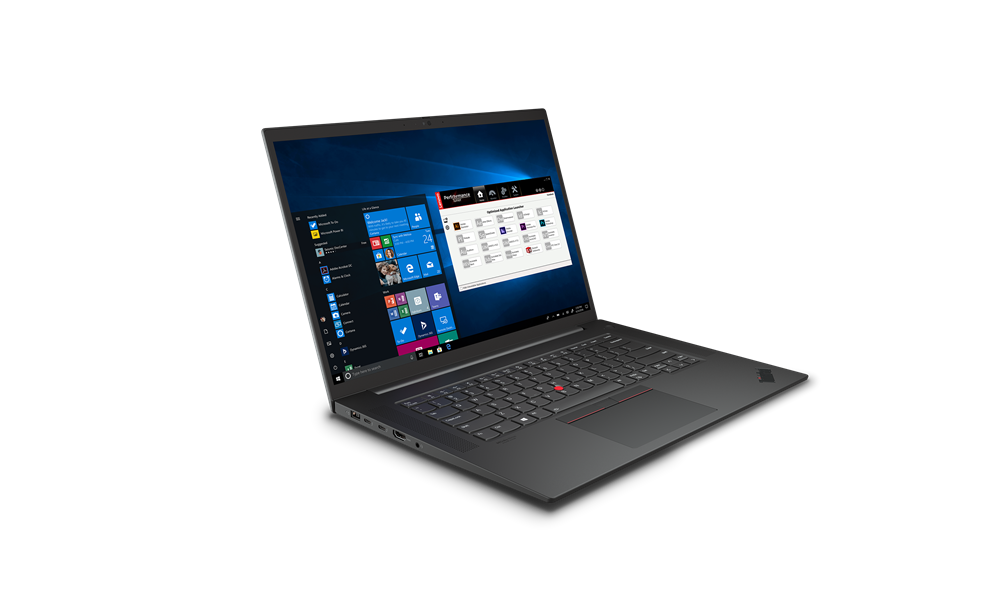

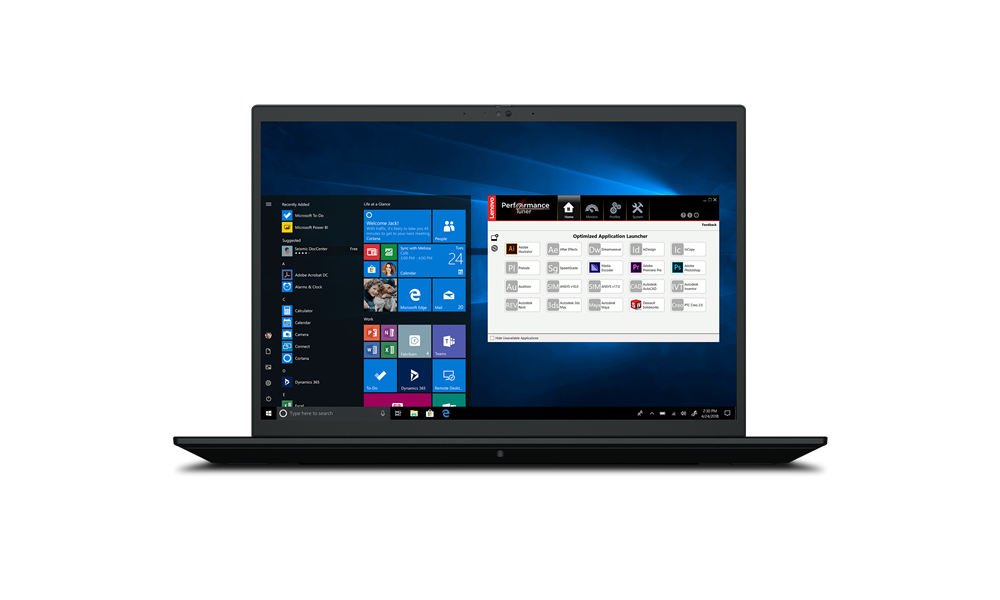

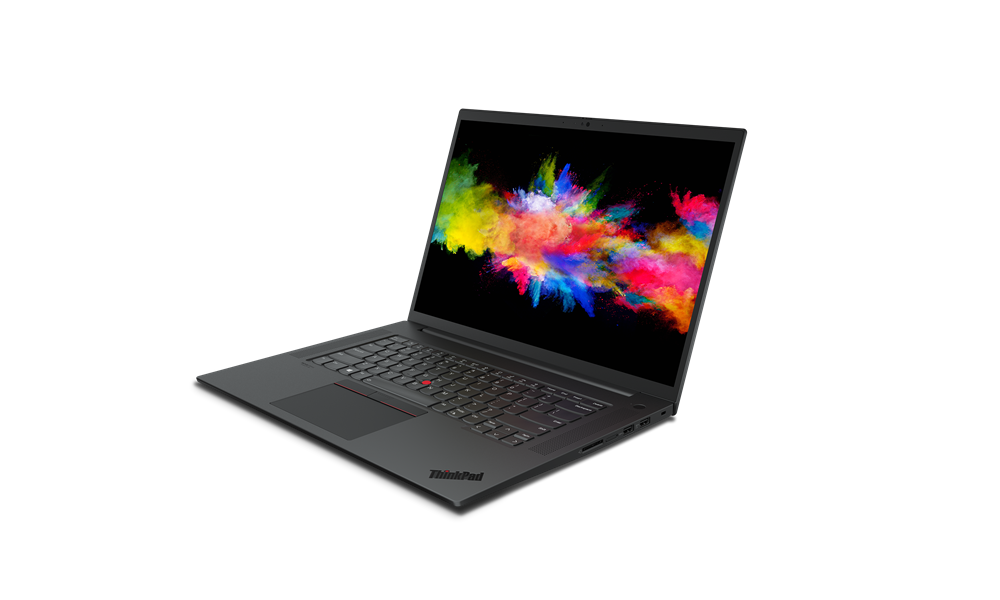

Lenovo ThinkPad P1 Gen 4 Notebook - Intel Core i7-11800H (8C / 16T, 2.3 / 4.6GHz, 24MB) / 1x 16GB SO-DIMM DDR4-3200 Non-ECC / 512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0 / 16" WQXGA (2560x1600) IPS 400nits Anti-glare, 100% sRGB, TÜV Low Blue Light / Windows 11 DG Windows 10 Pro 64, English / 3-year, Onsite + 3Y Premier Support Upgrade from 3Y Onsite - 20Y4S2NG00

Powerful, mobile, and visually stunning. The ThinkPad® P1 is the perfect combination of form and function designed to be admired. The sleek thin and light carbon fiber weave design hints at what’s inside: a powerful system that offers a choice of the latest Intel Core or Xeon processors, redesigned thermals for increased graphics support, up to NVIDIA RTX A5000 GPU and PCIe Gen4 SSDs for faster, advanced storage technologies. Now boasting a 16-inch panel, narrower bezels, and a 16:10 aspect ratio for increased screen real estate, the P1 is a content creator’s dream. Reimagined with the remote user in mind, the P1 is 5G enabled for ultimate connectivity, a 1080p FHD camera for high quality video conferencing, a new keyboard with larger touchpad and a new fingerprint reader integrated with the power button. Equipped with higher wattage power adapters, larger battery, low blue light displays, Dolby Vision, and color calibration for crisp, clear images this robust system is the perfect combination of power, ultra-premium design, and true mobility.

Specification:

Performance

Processor	Intel Core i7-11800H (8C / 16T, 2.3 / 4.6GHz, 24MB)
Graphics	NVIDIA T1200 4GB GDDR6
Chipset	Intel WM590 Chipset
Memory	1x 16GB SO-DIMM DDR4-3200 Non-ECC
Memory Slots	Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory	Up to 64GB DDR4-3200
Storage	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0
Storage Support	Models with Intel UHD Graphics, NVIDIA T1200, and NVIDIA RTX A2000 Graphics: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB • RAID 0/1 support
Optical	None
Audio Chip	High Definition (HD) Audio, Realtek ALC3306 codec
Speakers	Stereo speakers, Dolby Atmos
Camera	FHD 1080p + IR with Privacy Shutter
Microphone	2x, Array
Battery	Integrated 90Wh
Power Adapter	170W Slim Tip (3-pin)

Design

Display	16" WQXGA (2560x1600) IPS 400nits Anti-glare, 100% sRGB, TÜV Low Blue Light
Touchscreen	None
Keyboard	Backlit, English
Case Color	Black
Case Material	CFRP / GFRP hybrid (top), Aluminium (bottom)
Dimensions (WxDxH)	359.5 x 253.8 x 17.7 mm (14.15 x 9.99 x 0.7 inches)
Weight	1.81 kg (3.99 lbs)

SOFTWARE

Operating System	Windows 11 DG Windows 10 Pro 64, English
Bundled Software	None

CONNECTIVITY

Ethernet	No onboard Ethernet
WLAN + Bluetooth	Intel Wi-Fi 6E AX210, 11ax 2x2 + BT5.1
WWAN	None
SIM Card	None
NFC	None
Standard Ports	• 2x USB 3.2 Gen 1 (one Always On) • 1x Headphone / microphone combo jack (3.5mm) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x SD card reader
Optional Ports	1x HDMI 2.0 (models with NVIDIA T1200 graphics)
Monitor Cable	None

SECURITY and PRIVACY

Security Chip	Discrete TPM 2.0
Fingerprint Reader	Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks	Kensington Nano Security Slot, 2.5 x 6 mm
Other Security	IR camera for Windows Hello

MANAGEABILITY

System Management

Non-vPro

SERVICE

Base Warranty	3-year, Onsite
Included Upgrade	3Y Premier Support Upgrade from 3Y Onsite (5WS0V07066)

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications	• ENERGY STAR 8.0 • EPEAT Gold • RoHS compliant
Mil-Spec Test	MIL-STD-810H military test passed

NOTE: Monitor sold separately for desktop computers. Images may not be extact for the part. Always check specs.
Cybergiant is a Lenovo Authorized Seller. We have been a Lenovo Gold Partner since 2018.
