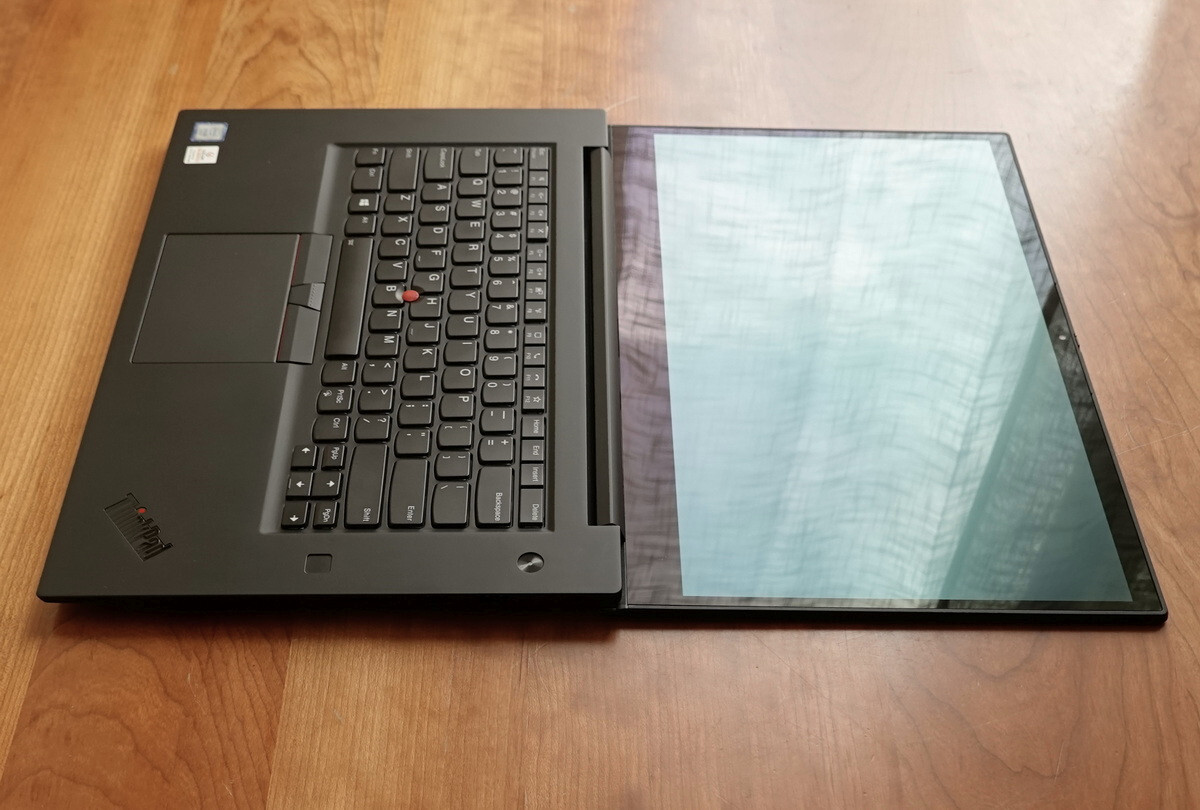

Lenovo ThinkPad P1 Gen 3 UHD OLED Laptop

Accidental Damage Warranty coverage

• Intel Xeon W-10855M (2.8GHz up to 5.1GHz) 6-core (12-Threads) 12MB Cache, 2933MHz)
• Intel UHD Graphics and NVIDIA Quadro T2000 Max-Q Discrete 4GB GDDR6 DirectX 12
• 32GB RAM DDR4 2666MHz
• 1TB Solid State Drive PCIe NVMe ( Up to two M.2 SSD)
• 15.6-inch UHD (3840x2160) 4K Dolby Vision HDR Wide viewing angle & High density FlexView OLED Display 100% DCI-P3 Color Gamut, 400-540 nit, Pen and Touch Support with 10 touch points
• IR Camera and HD720p camera with ThinkShutter camera privacy, fixed focus
• Fingerprint Reader
• Intel Wi-Fi 6 AX201, Wi-Fi 2x2 802.11ax + Bluetooth 5.1
• Backlit Keyboard
• 80Wh Battery
• 2 x USB Type-C / Thunderbolt 3 port, 2 x USB 3.2 (one Always On), 1 x HDMI 2.0
• Dolby Atmos sound system
• 4 lbs

Model: 20TJS1W700
Type: 20TJ-S1W700

Warranty End Date: 2024-02-24

This machine is entitled to a warranty upgrade of Premier Support service.

This product is entitled to parts and labor and is entitled to on-site service. This machine is also entitled to the on-site Accidental Damage Protection. Customers may call the PC HelpCenter for more information.

CPU

• CPU Type: Intel Xeon W-10855M
• CPU Speed: 2.80 GHz
• Turbo Frequency: Up to 5.1 GHz
• Number of Cores: 6-core Processor (12-Threads)
• CPU L3 Cache: 12MB

Display

• Screen Size: 15.6"
• Touchscreen: Yes; Capacitive-type multi-touch, supports 10-finger gesture ,AR (anti-reflection) / AS (anti-smudge) coating
• Wide Screen Support: Yes
• Display Type: UHD 4K
• Resolution: 3840x2160
• LCD Features: Dolby Vision HDR OLED , AR (anti-reflection) / AS (anti-smudge), SDR 400nit, HDR 540nit (peak), 16:9 aspect ratio, 100000:1 contrast ratio, 100% DCI-P3 Color Gamut, 170° viewing angle

Graphics

• Intel UHD Graphics Integrated Card
• NVIDIA Quadro T2000 Max-Q Discrete 4GB GDDR6 DirectX 12

Drives: Up to two M.2 SSD

• SSD: 1TB Solid state Drive M.2 PCIe NVMe

Memory

• Memory: 32 GB
• Memory Speed: DDR4 2933 GHz
• Memory Spec: 32GB
• Memory Slot (Total): 2
• Max Memory Supported: 64GB

Communications

• WLAN: Intel Wi-Fi 6 AX201, Wi-Fi 2x2 802.11ax
• Bluetooth: Bluetooth 5.1

Ports

• 2x USB 3.2 Gen 1 (one Always On)
• 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery and DisplayPort)
• 1x HDMI 2.0
• 1x SD card reader
• 1x headphone / microphone combo jack (3.5mm)
• 1x Security keyhole

Audio

• Audio: HD Audio, Realtek ALC3286
• Speaker: Stereo speakers, 2 watt x 2
• Dolby Atmos sound system

Input Device

• Touchpad: UltraNav 3-button TrackPoint pointing device and 2-button glass surface multi-touch touchpad
• Keyboard: 6-row, spill-resistant, multimedia Fn keys with Unified Communications controls
• Backlit Keyboard: Yes
• Webcam: IR Camera and HD720p camera with ThinkShutter camera privacy, fixed focus

Other:

• Fingerprint Reader: Touch style match on chip fingerprint reader on the keyboard bezel
• Security chip: Discrete TPM 2.0, TCG Certified
• Mil-Spec test: MIL-STD-810G military certification
• Case color: Black Weave
• Case material: Carbon Fiber (Black) + PC + PPS Hybrid (top), Aluminum + PC + ABS (bottom)

Power

• 135W Slim tip AC adapter

Battery

• Integrated Li-ion 80Wh battery, supports Rapid Charge (charge up to 80% in 1hr)

Dimensions & Weight

• Dimensions (W x D x H): 361.8 x 245.7 x18.4 mm (14.24 x 9.67 x 0.72 inches)
• Weight: 1.7 kg (3.75 lbs)
