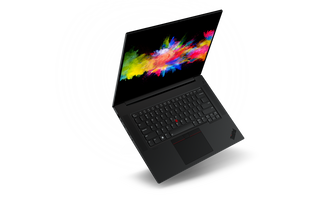

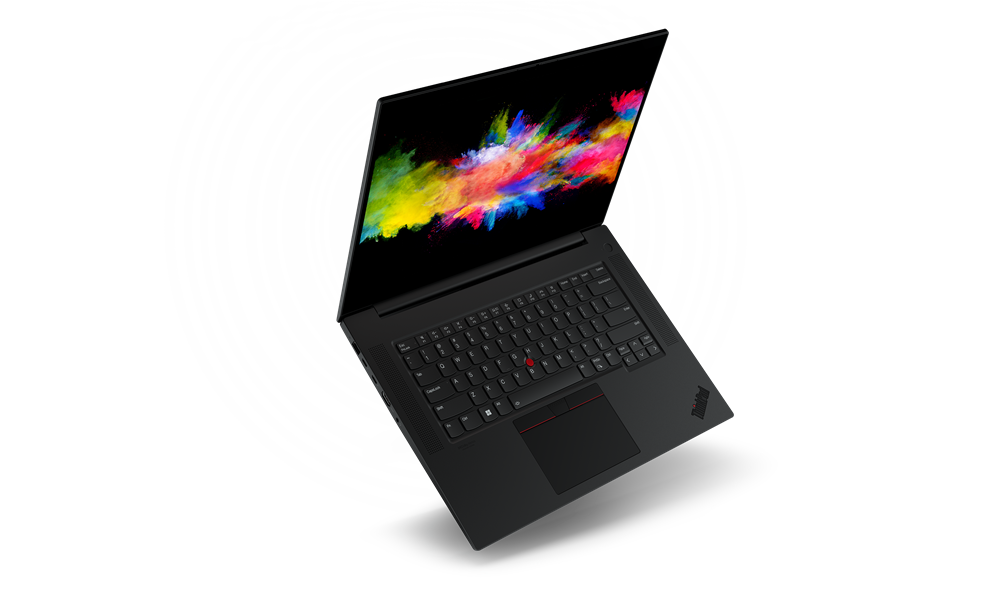

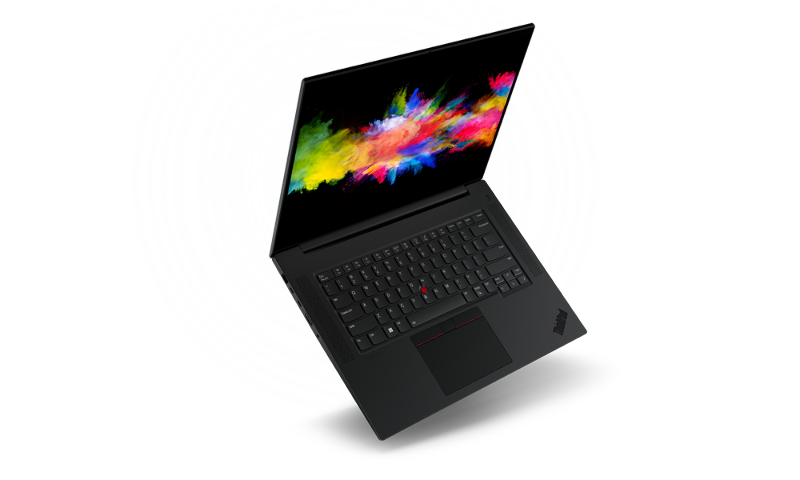

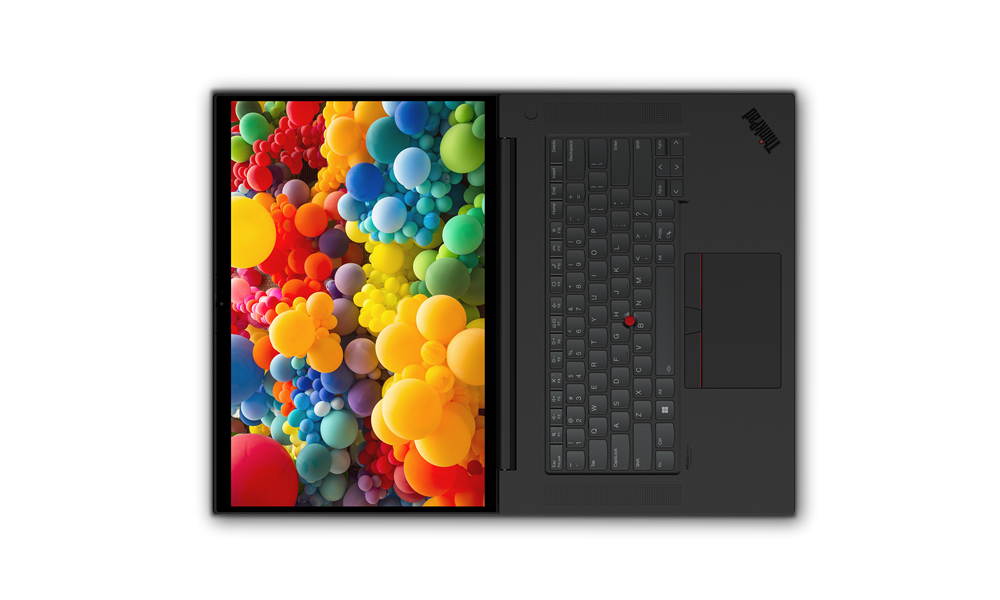

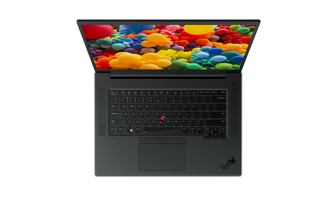

Lenovo ThinkPad P1 Gen 5 Notebook - Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB / 2x 16GB SO-DIMM DDR5-4800 non-ECC / 1TB SSD M.2 2280 PCIe 4.0 x4 Performance NVMe Opal2 / 16.0" WQUXGA (3840x2400) IPS 600nits Anti-reflective / Anti-smudge, 100% Adobe RGB, DisplayHDR 400, Dolby Vision, TÜV Low Blue Light, Touch / Windows 11 DG Windows 10 Pro 64, English / 3-year, Courier or Carry-in + 3Y Premier Support Upgrade from 3Y Courier/Carry-in / 3-year, Courier or Carry-in + 3Y Sealed Battery Add On - 21DC003SUS

Powerful, mobile, and visually stunning, the ThinkPad P1 is the perfect combination of form and function designed to be admired. This sleek design hints at what’s inside: a powerful system that offers the professional performance of the latest Intel Core processors and graphics support up to NVIDIA RTX A5500 GPU. Now with a liquid metal thermal design, the P1 provides improved cooling performance and longterm reliability. Boasting a 16-inch panel, narrow bezel and a 16:10 aspect ratio for increased screen real estate, the P1 is a content creator’s dream. Designed with the modern user in mind, the P1 offers low blue light displays, Dolby Vision and color calibration for crisp, clear images, plus ultimate 5G connectivity, creating the perfect combination of power, ultra-premium design, and true mobility

Specification:

Performance

Processor	Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB
Graphics	NVIDIA RTX A2000 8GB GDDR6
Chipset	Intel SoC Platform
Memory	2x 16GB SO-DIMM DDR5-4800 non-ECC
Memory Slots	Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory	Up to 64GB DDR5-4800
Storage	1TB SSD M.2 2280 PCIe 4.0 x4 Performance NVMe Opal2
Storage Support	Models with integrated graphics or NVIDIA RTX A1000/A2000: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 8TB, 4TB each • RAID 0/1 support
Optical	None
Audio Chip	High Definition (HD) Audio, Realtek ALC3306 codec
Speakers	Stereo speakers, 2W x2, optimized with Dolby Atmos
Camera	FHD 1080p + IR with Privacy Shutter
Microphone	2x, Array
Battery	Integrated 90Wh
Power Adapter	170W Slim Tip (3-pin)

Design

Display	16.0" WQUXGA (3840x2400) IPS 600nits Anti-reflective / Anti-smudge, 100% Adobe RGB, DisplayHDR 400, Dolby Vision, TÜV Low Blue Light, Touch
Touchscreen	OGM, 10-point Multi-touch
Keyboard	Backlit, English
Case Color	Black, Weave
Case Material	CFRP / GFRP (top), Aluminium (bottom)
Dimensions (WxDxH)	359.5 x 253.8 x 18.2 mm (14.15 x 9.99 x 0.72 inches)
Weight	1.86 kg (4.1 lbs)

SOFTWARE

Operating System	Windows 11 DG Windows 10 Pro 64, English
Bundled Software	None

CONNECTIVITY

Ethernet	No onboard Ethernet
WLAN + Bluetooth	Intel AX211 Wi-Fi 6E, 2x2 + BT5.1
WWAN	None
SIM Card	None
NFC	None

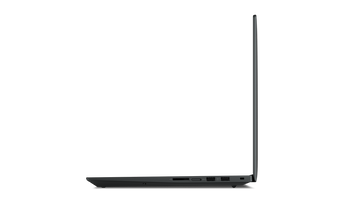

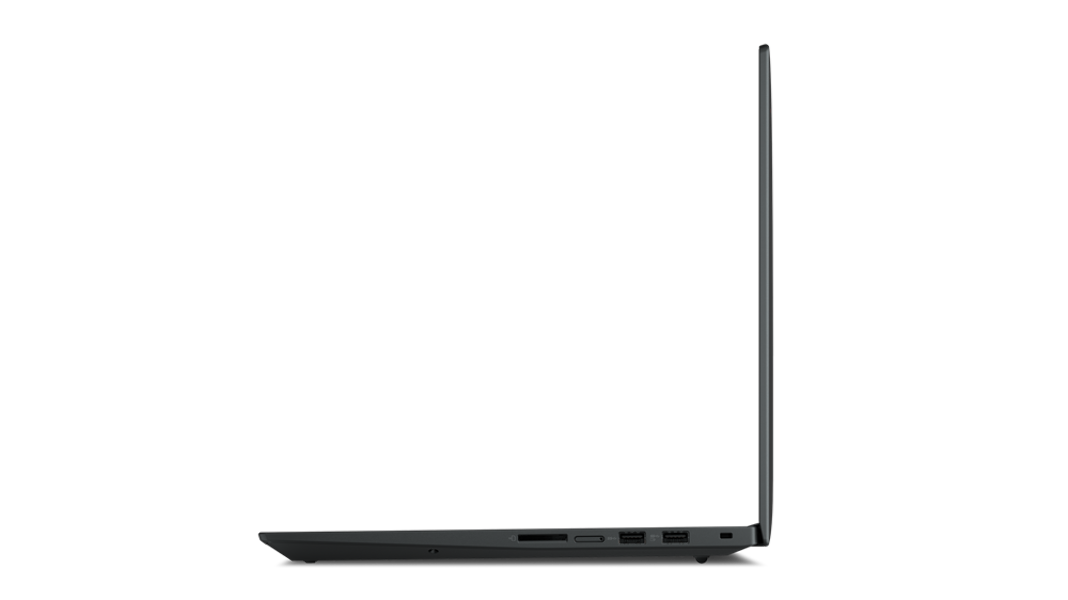

Standard Ports	• Models with NVIDIA graphics: 1x HDMI, up to 8K/60Hz • 1x Headphone / microphone combo jack (3.5mm) • 1x Power connector • 1x SD Express 7.0 card reader • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4) • 2x USB 3.2 Gen 1 (one Always On)
Optional Ports	1x Nano-SIM card slot (WWAN support models)
Monitor Cable	None

SECURITY and PRIVACY

Security Chip	Discrete TPM 2.0
Fingerprint Reader	Touch Style, Match-on-Chip
Physical Locks	Kensington Nano Security Slot, 2.5 x 6 mm
Other Security	Camera privacy shutter

MANAGEABILITY

System Management

Non-vPro

SERVICE

Base Warranty	3-year, Courier or Carry-in
Included Upgrade	3Y Sealed Battery Add On (5WS0V07085), 3Y Premier Support Upgrade from 3Y Courier/Carry-in (5WS0V07092)

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications	• RoHS compliant • ENERGY STAR 8.0 • EPEAT Gold
Mil-Spec Test	MIL-STD-810H military test passed

NOTE: Monitor sold separately for desktop computers. Images may not be extact for the part. Always check specs.
